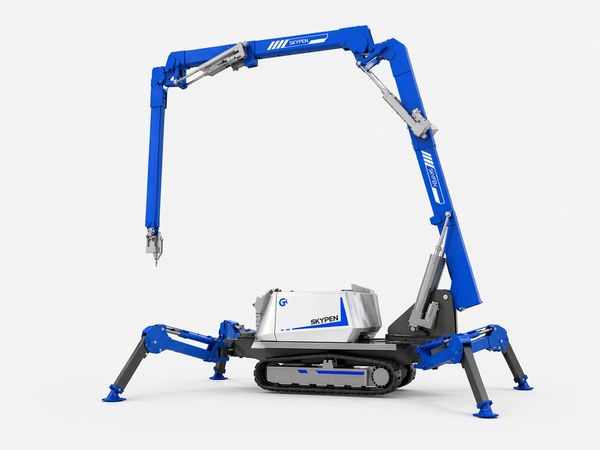

(SKYPEN) Spider-Type Construction 3D Printing Robot
SKYPEN GL-3DPRT-SP-M
Maximum Printing Radius: 10.1 m (measured from the vehicle body J0 joint as the reference center)
Maximum Printing Height: 9.5 m
Printing Speed: 50–200 mm/s
Deployment time: 2 hours
SKYPEN GL-3DPRT-SP-S
Maximum Printing Radius: 7.4 m (measured from the vehicle body J0 joint as the reference center)
Maximum Printing Height: 7.4 m
Printing Speed: 50–200 mm/s
Deployment time: 2 hours
Robotic arm-type 3D Printing Systems
GL-3DPRT-TJA (In-situ 3D construction printing)
Suitable for 1-story villas, houses, and other in-situ construction projects.
Dimensions: 18000 (L) x8000 (W) ×6000 (H) mm
Printing size: 15000 (L)×7000 (W) ×4500 (H) mm
Maximum printing speed: up to 200 mm/s
GL-3DPRT-CRL (Robot Crawler)
Reach: 3100 mm+1500 mm
Maximum printing speed: up to 200 mm/s
Degrees of freedom: 6+2 axes
GL-3DPRT-RM (Multi-functional Robot)
A construction robot that integrates printing, polishing, and spraying.
GL-3DPRT-RS1 (Robot )
Reach: 1612 mm
Track length: 4000 mm
Degrees of freedom: 6+2
Maximum printing speed: up to 150 mm/s
GL-3DPRT-RS2 (Robot )
Reach: 2700 mm + 1500 mm
Track length：6000mm
Degrees of freedom: 6+2
Maximum printing speed: up to 200 mm/s
Gantry-type 3D printing systems
GL-3DPRT-D2 (Laborotary-class)
Dimensions: 1200 (L) × 1400 (W) × 1550 (H) mm
Printing size: 620 (L) × 740 (W) × 490 (H) mm
Max printing speed: up to 150 mm/s
GL-3DPRT-D1 (Laborotary-class)
Dimensions: 1370 (L) × 1170 (W) × 1460 (H) mm
Printing size: 600 (L) × 600 (W) × 550 (H) mm
Max printing speed: up to 150 mm/s
GL-3DPRT-L (Laborotary-class)
Dimensions: 2550 (L) × 2350 (W)× 2520 (H) mm
Printing size: 1800 (L) × 1700 (W) × 1500 (H) mm
Maximum printing speed: up to 200 mm/s
GL-3DPRT-C1 (Industrial-class)
Dimensions: 6810(L) × 4650(W) × 3710(H) mm
Printing size: 5500(L) × 3550(W) × 2500(H) mm
Maximum printing speed: up to 300 mm/s
GL-3DPRT-C2 (Industrial-class)
Dimensions: 15800 (L) x8800 (W) ×5250(H) mm
Printing size: 12000 (L)×6000 (W) ×4000 (H) mm
Maximum printing speed: up to 300 mm/s
GL-3DPRT-C3 (Industrial-class)
Dimensions: 16000 (L) x12000 (W) ×5500(H) mm
Printing size: 12000 (L)×10000 (W) ×4000 (H) mm
Maximum printing speed: up to 300 mm/s
GL-3DPRT-C4 site ( in-situ 3D construction printing system)
Suitable for 2-story, 3-story villas, houses, and other in-situ construction projects.
Dimensions: 24000 (L) x18000 (W) ×11500 (H) mm
Printing size: 20000 (L)×15000 (W) ×10000 (H) mm
Maximum printing speed: up to 300 mm/s
